Projek Mivec Hybrid 1.6 Ke 1.8 - Vol. 8 (Mission Accomplished)

byjefftacra •
39
sambungan dari vol. 7 (click here) - segalanya berjalan lancar. setelah seminggu akhirnya projek ini siap jugak. dah siap running sekarang hampir 500km, so far ok je.

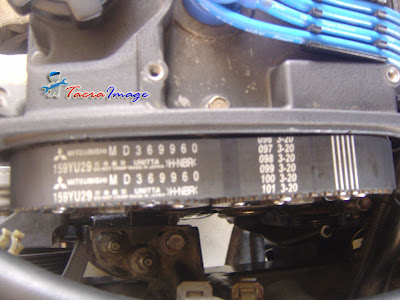

timing belt 4G94, 159YU29

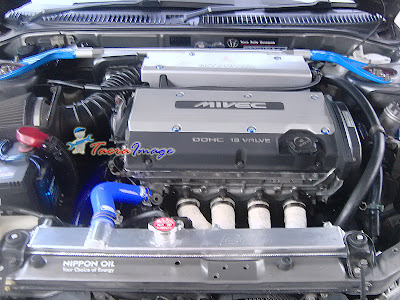

dah siap sepenuhnya

kedudukan enjin nampak tinggi dari asal

strut bar hampir terlindung dari cover intake

samco hose

dah boleh jalan-jalan

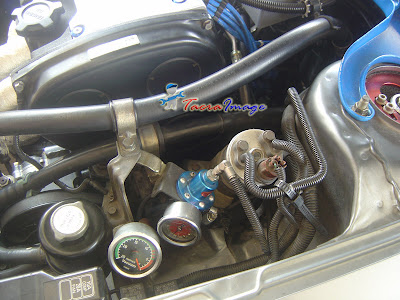

fuel regulator set pada 39psi dan di sebelahnya ialah vacuum meter

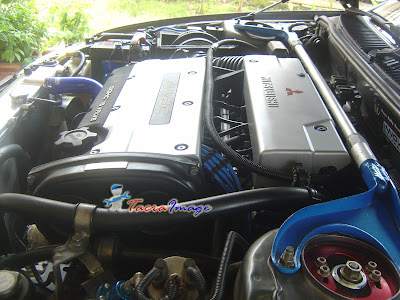

pandangan sisi kanan
$ads={1}

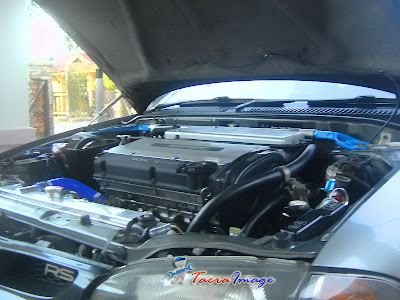

pandangan depan

pandangan sisi kiri

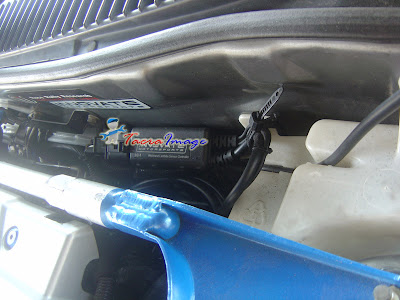

apa tu?

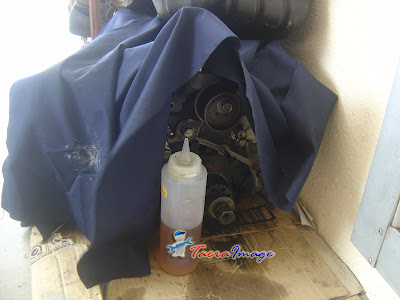

yang lama disimpan dulu, dah ada yang merisik

sekian, terima kasih
jumpa lagi
Tags:

39 Comments

  1. Uncle|BeeSaturday, 28 May 2011 at 01:06:00 GMT+8

    fuyooo...... dah jadi compaq siot enjin bay....

    ReplyDelete
  2. AnonymousSaturday, 28 May 2011 at 09:15:00 GMT+8

    brapa kos suma nk hybrid 1.8 abg jeff..?? plan nk hybrid jgk mivec sya nih....

    ReplyDelete
  3. + akatsuki +Monday, 30 May 2011 at 16:33:00 GMT+8

    love your DIY blog. very informative!

    ReplyDelete
  4. jefftacraMonday, 30 May 2011 at 17:18:00 GMT+8

    thanks akatsuki - owner mivec hybrid power jugak ni

    ReplyDelete
  5. syahMonday, 20 June 2011 at 09:39:00 GMT+8

    woo.. best2..kemas n bersih... congrat broo..jaga oil pump anda.. :P

    ReplyDelete
  6. AnonymousTuesday, 21 June 2011 at 22:18:00 GMT+8

    saya cukup respek dan saspek kat bro jeff... keep it up bro...thanks for sharing...a lot of info

    ReplyDelete
  7. AnonymousWednesday, 22 June 2011 at 09:07:00 GMT+8

    thumb ups!!

    ReplyDelete
  8. jefftacraWednesday, 22 June 2011 at 16:17:00 GMT+8

    setakat ni ok je selepas projek hybrid ni, cruising pernah mencecah 160kmj dan belum lagi try top speed sebenar. kereta terasa sangat ringan dan pick up pun boleh tahan, gear 5 kalau kelajuan 60kmj nak memotong tekan je pedal, tak perlu drop gear.

    ReplyDelete
  9. jefftacraWednesday, 22 June 2011 at 16:19:00 GMT+8

    tuning safc sendir dengan menggunakan wideband, sor far minyak ok, idling air fuel ratio sekitar 13.9 - 14.6, masa cruising dalam 14.1 - 14.4 dan masa hi throttle dalam 12.1, masa wide open throttle (wot) dalam 11.2, apa pun hybrid ni memang best.

    ReplyDelete
  10. AnonymousFriday, 24 June 2011 at 01:13:00 GMT+8

    bro jeff nak tanya tuning safc dgn vafc sama tak? bro boleh tolong buatkan tak?

    ReplyDelete
  11. AnonymousThursday, 7 July 2011 at 23:33:00 GMT+8

    salam bro....apex nie...nk tnye ckit la...kenape bro xpki pisten mivec n bro pilih pisten 93 na?klau pki pisten mivec bp tebal metal gasket yg bro rs sesuai utk dpt CR 13bar?thanx bro....

    ReplyDelete
  12. jefftacraFriday, 8 July 2011 at 07:19:00 GMT+8

    saya tak pakai piston mivec sebab tak nak bagi CR tinggi sangat, ini akan menyebabkan knocking yang kuat dan saya tak pasti kalau nak pakai piston mivec berapa ketebalan gasket yang perlu digunakan

    ReplyDelete
  13. IdzwansThursday, 14 July 2011 at 10:40:00 GMT+8

    Salam.. bro tacra.. extractor apa yang bro pakai utk head baru ni??? bapa diameter bg extrator tersebut.. dan size paiping apa yg sesuai utk 4g93 mivec ni.

    ReplyDelete
  14. AnonymousFriday, 19 August 2011 at 11:36:00 GMT+8

    mungkin boleh cuba metal gasket 1.5mm untuk piston mivec. Good blog.

    ReplyDelete
  15. AnonymousSaturday, 24 September 2011 at 15:41:00 GMT+8

    salam...abg jeff....sy nk tumpang tnya...kalau 4g93 sohc nk buat mcm nih boleh x? barang2 apa yg nk kena cari? wiring kalau pakai 4g93 dohc boleh x?

    ReplyDelete
  16. jefftacraSaturday, 24 September 2011 at 16:13:00 GMT+8

    4g93 sohc nak masuk head mivec pun boleh. pakai wiring asal 93 pun boleh tapi kena guna kaedah lain nak trigger mivec switch supaya jadi macam nomal mivec. nak buat kena cari head mivec complete, bottom semua pakai 93

    ReplyDelete
  17. AnonymousSunday, 25 September 2011 at 10:51:00 GMT+8

    ecu pakai 93 sohc boleh gak ka abg jeff?....mivec boleh masuk ka? ada stngah pendapat kata wiring mivec ni susah skit..1 sensor rosak mivec x on...

    ReplyDelete
  18. AnonymousSunday, 25 September 2011 at 12:57:00 GMT+8

    wiring mivec sama x dgn wiring 93 dohc? wayer salenoid mivec 2 ada x kat wiring 93 d0hc?

    ReplyDelete
  19. jefftacraMonday, 26 September 2011 at 10:55:00 GMT+8

    wiring SOHC dan wiring mivec tak sama dengan DOHC yang lain

    ReplyDelete
  20. AnonymousFriday, 30 September 2011 at 01:52:00 GMT+8

    timing belt apa nk pakai yg nih

    ReplyDelete
  21. jefftacraFriday, 30 September 2011 at 17:30:00 GMT+8

    timing belt 4G64 (159YU29) atau pun boleh pakai timing belt toyota supra

    ReplyDelete
  22. AnonymousWednesday, 16 November 2011 at 18:45:00 GMT+8

    ape beza mivec silver top n black top?yg mn lbh lasak n ok..nok pakai mivec plok..

    ReplyDelete
  23. ikhsan roslanSaturday, 26 November 2011 at 13:48:00 GMT+8

    cun giler enjay bay bro...kalau sy hantar krete kat bro then bro buat kan mcm ni boleh? berape ye cost? sy pakai satria 1.6 auto standard...bercadang nak tukar gearbox manual 1.8 sebab gearbox sekarang tgh problem...

    ReplyDelete
  24. AnonymousSunday, 4 December 2011 at 00:29:00 GMT+8

    bro still pkai head 4g92 mivec lgi ke?

    ReplyDelete
  25. jefftacraSunday, 4 December 2011 at 09:19:00 GMT+8

    yes, saya masih lagi mengekalkan head 92M

    ReplyDelete
  26. asam pedas tetelMonday, 16 January 2012 at 01:07:00 GMT+8

    salam bro.. sy pon dh buat hybrid mcm ni tp sy maintain pakai wiring asal 4g93. masalah sy skang ni ape method yg sesuai utk cun kan AFR? skang ni petrol sy sgt lean n sy pakai vafc utk trigger mivec tp x dpt touch up ignition, fuel dgn air flow.. bro ade cadangan x cmne sy nk optimumkan AFR?

    ReplyDelete
  27. jefftacraMonday, 16 January 2012 at 07:20:00 GMT+8

    VAFC dah boleh buat correction untuk cantikkan AFR, kena tuning menggunakan wideband baru dapat result yang cantik. VAFC tak dapat tune ignition kena ada SITC (super ignition timing control). nak senang masuk e-manage, siap pakej untuk ignition sekali

    ReplyDelete
  28. AnonymousFriday, 16 March 2012 at 12:36:00 GMT+8

    salam ,nak endorse engin ni senang x?ape document yg diperlukan?

    ReplyDelete
  29. UnknownWednesday, 9 May 2012 at 15:54:00 GMT+8

    Bro..nk tanye...de 1 halfcut mivec nie auto...head org dh beli swap dgn gti head dan wiring nye skali.....kedai nk tolak murah skit...bley ke bro enjin nie? Bermakna blok mivec digabung dgn head gti...jelaskan bro...

    ReplyDelete
  30. UnknownTuesday, 1 January 2013 at 18:34:00 GMT+8

    Salam bro....sy berhajat nak pasang 4g93 sohc pade wira yg enjin asal 4g15 manual...
    agak2 la kan harge sume siap pasang x termasuk inspection brape ye??
    boleh x bro tlg bg info bengkel mane or bro tlg bole buatkan??tapi saye nak pkai gear box asal 4g15 balik bole kan?

    ReplyDelete
  31. AnonymousThursday, 17 January 2013 at 13:27:00 GMT+8

    sethu saye,gearbox 4g15 xblh msuk kt 4g93 sbb casing,kalo nk masuk gk,tkar casing je,gear gune yg asal,kalo salh tolng betul kn boh

    ReplyDelete
  32. mohamad arifTuesday, 15 April 2014 at 02:12:00 GMT+8

    Salam abg jeff. Nak tanya abg guna ecu 92 atau 93 untuk projek hybrid ni.

    ReplyDelete
  33. UnknownMonday, 19 January 2015 at 08:42:00 GMT+8

    Bro nak tanye je.... Kalau nak tukar 4g93 dohc kepada 1.8 mivec.... Perlu apa barang ye..... Head mivec.... Ecu mivec.... Wiring boleh tak maintain 4g93 punya ataupun kena tukar juga... Tq bro...

    ReplyDelete
  34. UnknownTuesday, 3 February 2015 at 16:51:00 GMT+8

    Assalam... klu satria gti masuk head mivec yg mne sesuai... wiring kne tukar ker

    ReplyDelete
  35. ladydSaturday, 28 March 2015 at 19:25:00 GMT+8

    Salam.. sape dh ada solution utk engine knocking sbb cr tgi? Spec 1.8sohc + piston mivec + carb pajero..

    ReplyDelete
  36. ladydSaturday, 28 March 2015 at 19:26:00 GMT+8

    Salam.. sape dh ada solution utk engine knocking sbb cr tgi? Spec 1.8sohc + piston mivec + carb pajero..

    ReplyDelete
  37. ladydSaturday, 28 March 2015 at 19:26:00 GMT+8

    Salam.. sape dh ada solution utk engine knocking sbb cr tgi? Spec 1.8sohc + piston mivec + carb pajero..

    ReplyDelete
  38. UnknownMonday, 27 July 2015 at 15:22:00 GMT+8

    Maaf..nubis nk brtnye..1.8 sohc n 1.8 dohc mne lg cun?sbb ad yg ckp pki sohc 1.8 lg cun..ad pomen ckp twin cam lg cun..pning r..mntk pnjelasn sikit..

    ReplyDelete
